Overall Performance

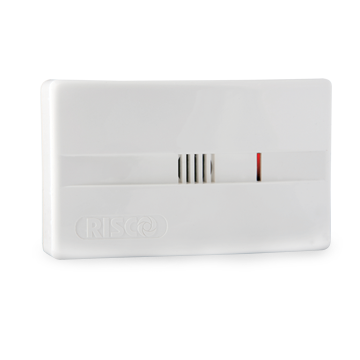

Wireless Glass Break Detector
Wireless Glass Break Detector
- ตรวจจับจากเสียงกระจกแตก จึงไม่ False Alarm จากแรงสั่นสะเทือน
- ใช้ได้กับกระจกแบบธรรมดา Temper และ Laminate
- มีสวิทช์ป้องกันการรื้อถอนอุปกรณ์ (Temper Switch)
- แบตเตอรี่ Lithium CR123A
คุณสมบัติ
- Protects all glass types: plate, tempered, laminated and wired
- High reliability to recognize false alarm if glass pane is broken from inside or glass is dropped on floor.
- Dual frequency pattern recognition
- Range up to 9m (30’)
- Wall and front cover tamper protection
- Full testing using the RG65 glass break simulator
- Supplied with wall/ceiling swivel for optimal mounting and performance
- Up to 3 years battery life using single long-life 3V lithium battery
- Compatible with the following RISCO systems: Agility™, WisDom, ProSYS™, LightSYS™ , Nova
- Available in 868MHz and 433MHz
- Model: RWT6G
ข้อมูลทางเทคนิค
- Battery Type: 1 x CR 123, 3V Lithium Battery
- Current Consumption: 22 µA standby
- Frequency: 868.65MHz, / 433.92MHz
- Supervision transmission: 15/65 minutes.
- Range (loss): 300m (1000 feet)
- Typical battery Life: 3 years
- Size (LxWxD): 87 x 50.7 x 28.6 mm (3.4 x 2.0 x 1.1 in.)
- Operating/Storage temperature: 0°C to 50°C (-32°F to 122°F)
- RF immunity: According to EN 50130-4
Certification
Compliance Statement
Hereby, RISCO Group declares that the Wireless LuNAR FireWatch is designed to comply with
- EN 62368-1:2014/A11:2017
- EN 61000-6-3:2007/A1:2011/AC:2012
- EN 301 489-1 V2.1.1
- EN 301 489-3 V2.1.1
- EN 300 220-3-2 V1.1.1
- EN 50130-4:2011
- EN 50581:2012
