ข้อมูลสินค้า
- Flush, wall or ceiling mount
- Provides reliable perimeter glass break detection
- Detects breakage of all glass types: plate, tempered, laminated and wired
- Microprocessor-based Dual Frequency Pattern Recognition
- 9 m (30 ’) range with omni-directional microphone
- Dead microphone supervision
- Remote test without opening unit
- Test using ViTRON™ Tester
- Model names:

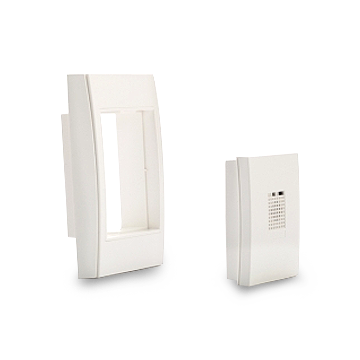

- RG71FMG3 ViTRON™ Plus Glassbreak Detector
- RG65 Tester for ViTRON™
- RA66 ViTRON™ Swivel
- Supply voltage: 9V-16V DC
- Current consumption (typical): 7.5mA
- Operational temperature: -20°C to 60°C
- Maximum humidity: 95% non-condensing
- Sensitivity setting: Dual stage potentiometer
- Tri-color LED indicator: Orange-over-sensitive, green: alarm & correct calibration, red: under-sensitive
- Contact ratings:
- Alarm relay: 100mA at 24VDC, NC, Optorelay
- Tamper relay: 500mA at 24VDC, NC
- Reed relay: 100mA at 24 VDC, NC
- Alarm Time: 2.5 seconds
- Latching modes: Any or first to latch operation modes
- Max No. of units on Any Latch loop: 80
- Max No of units on 1st to Latch loop: 10
- False alarm protection: Digital microprocessor signal processing and noise reduction with maximum ground plane
- Electrostatic discharge: No false alarms up to 8kV
- RF immunity: 40 V/m from 80MHz to 1GHz
- Enclosure material: Flame retardant ABS
- Enclosure dimensions: 25x28x95mm for the detector, 10x12x58mm for the magnet
