ข้อมูลทางเทคนิค

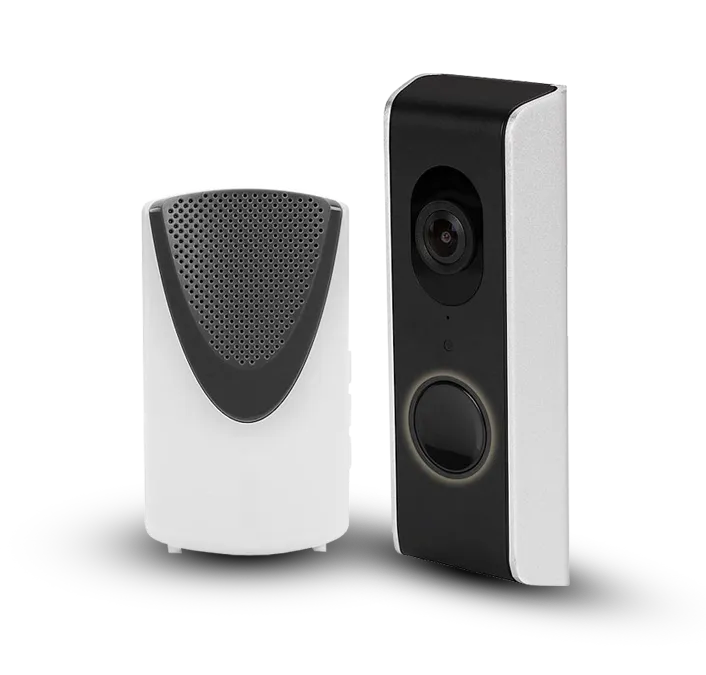

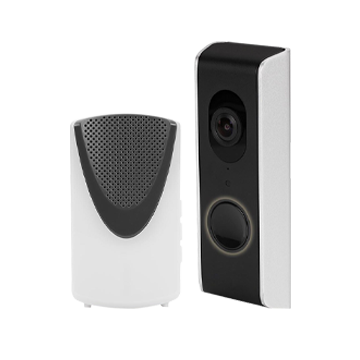

| Risco Video Doorbell Specifications | |
|---|---|
| Lens | CMOS Size: 2 Megapixel, 1/2.9 inch |
| Resolution | 1080P (1920 H * 1080V) |
| Lens Focal Length | 2.7mm |
| IR CUT | Supported |
| View Angle | H: 115±5°, V: 57±5°, FOV: 140±5° |
| Video Compression | H.264 |

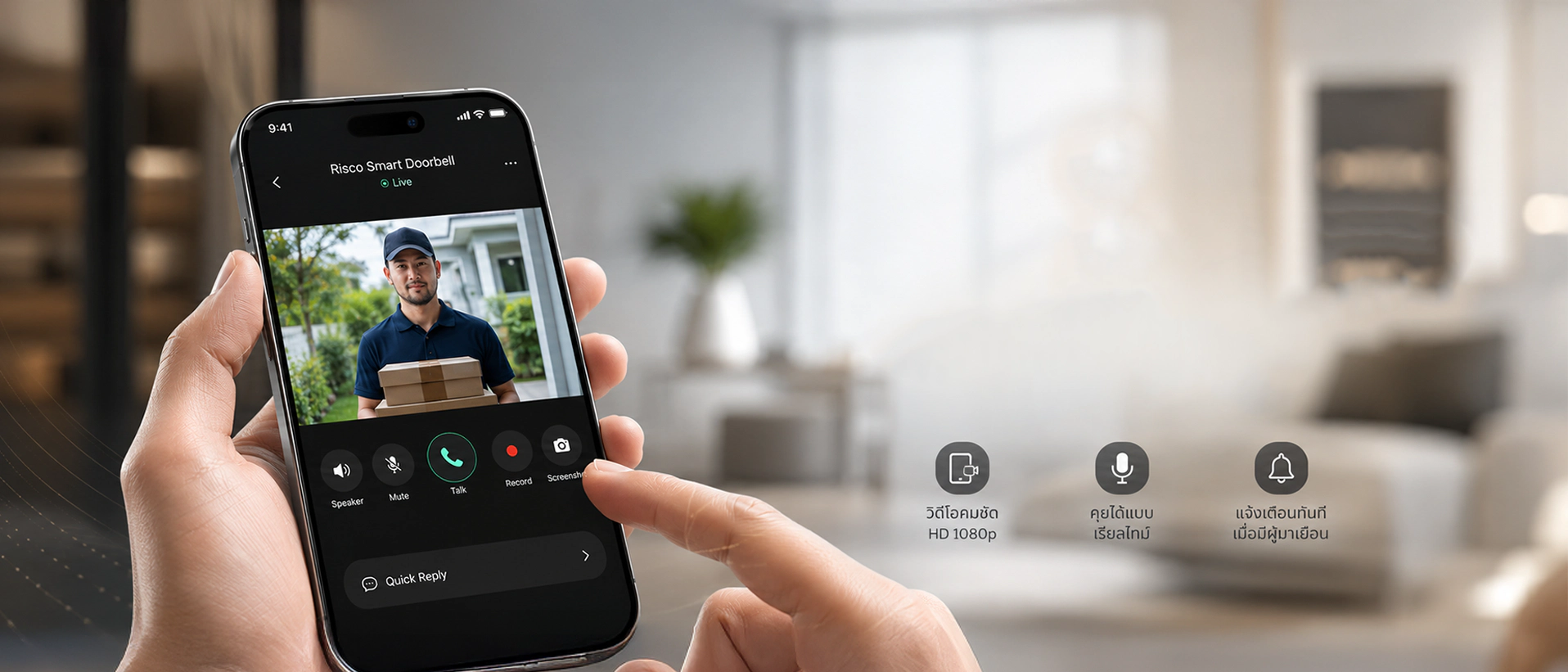

| Live View Resolution | 1080P / 720P / VGA |
| Frame Rate | 15FPS |
| Day & Night Model | Yes (Colour for Daytime, B&W for Nighttime) |
| Smart IR | Supported |
| Object Detection | Supported up to 3 Metres |
| 2-Way Audio | Supported |
| Volume Adjustable | Supported |
| Ethernet Network | Supported |
| Wi-Fi Network | Supported |
| Bluetooth | Supported for Wi-Fi Setup Only |
| Wi-Fi Frequency | 2400-2483.5MHz |
| Power Mode | DC 9V-48V |
| Power Consumption (IR off) | Average 160-200mA, Max 400mA |
| Power Consumption (IR on) | Average 200-280mA, Max 500mA |
| LED Angle | 120° |
| LED Wavelength | 850nm |
| Visible Range | Up to 3 Metres |
| Storage Media | TF Card (32GB provided) |
| Max Storage Capacity | 128GB |
| Recording Format | MP4, 1080P |
| Pre-Recording | 3-sec |
| Default Recording Time | 30 seconds, Dynamic up to 60 seconds |
| Reference Recording Time | 26 hours or 2600 events on 32GB card |
| I/O Interface | Power IN: DC, TF Card up to 128GB, Reset/Pairing Supported, LED: x1 Status Indication |
| Network Port | Combined in 10PIN holder |
| IP Rating | IP 55 |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Working Humidity | 10%~95%RH |
| Storage Humidity | 10%~95%RH |
| Dimensions (HxWxD) | 113x49x24 mm |
| Lock Control | Supports electric lock or gate, Max load: 2A/30Vdc or 0.3A/125VAC |
| Chime Frequency | 916 MHz |
| Chime Distance | Up to 150m (Line of Sight) |
| Chime Sound | 3 levels plus off |
| Chime Melody | 4 Melodies |
| Chime Buttons | Music Selection, Volume, Pair Button |
| Chime Battery Type | AA Battery x 3 (1 year typical) |
| Chime Dimensions (HxWxD) | 105x60x28 mm |
| Chime Weight | 146g (battery included) |
