Twin Photobeam Detectors

Twin Photobeam Detectors

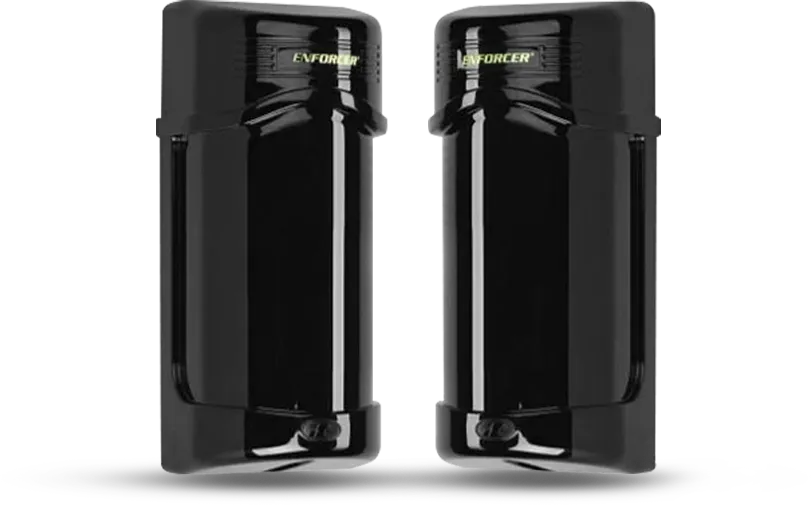

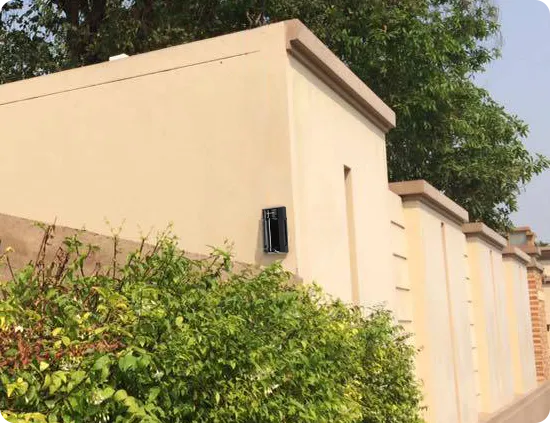

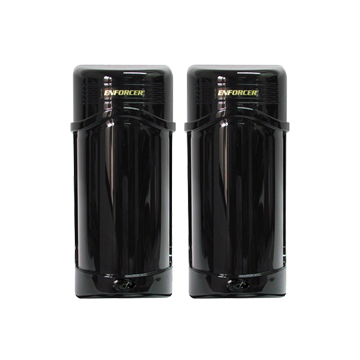

ENFORCER E-960-D90Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors

  • Built-in laser beam alignment system speeds accurate, reliable positioning
  • Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
  • Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
  • Weatherproof, sunlight-filtering case for indoor & outdoor use
  • Anti-frost system so that beam functions even in extreme conditions
  • Automatic input power filtering with special noise rejection circuitry
  • NC/NO alarm output
  • N.C. tamper circuit included
  • Non-polarized power inputs
  • Quick, easy installation with built-in laser beam alignment system
  • Interruption time adjustable for nearly all situations
หมวดหมู่:

คุณสมบัติ

  • Twin beams provide reliable perimeter security, minimizing false alarms for falling leaves, birds, etc.
  • Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain, snow, mist etc.
  • Weatherproof, sunlight-filtering case
  • Non-polarized power inputs
  • Anti-frost system
  • Automatic input power filtering with special noise rejection circuitry
  • NC/NO Alarm output  NC Tamper circuit included

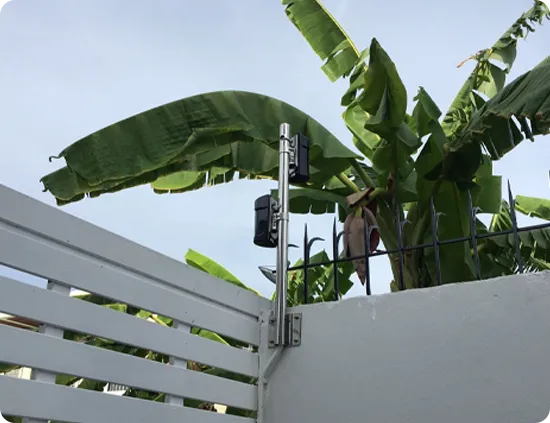

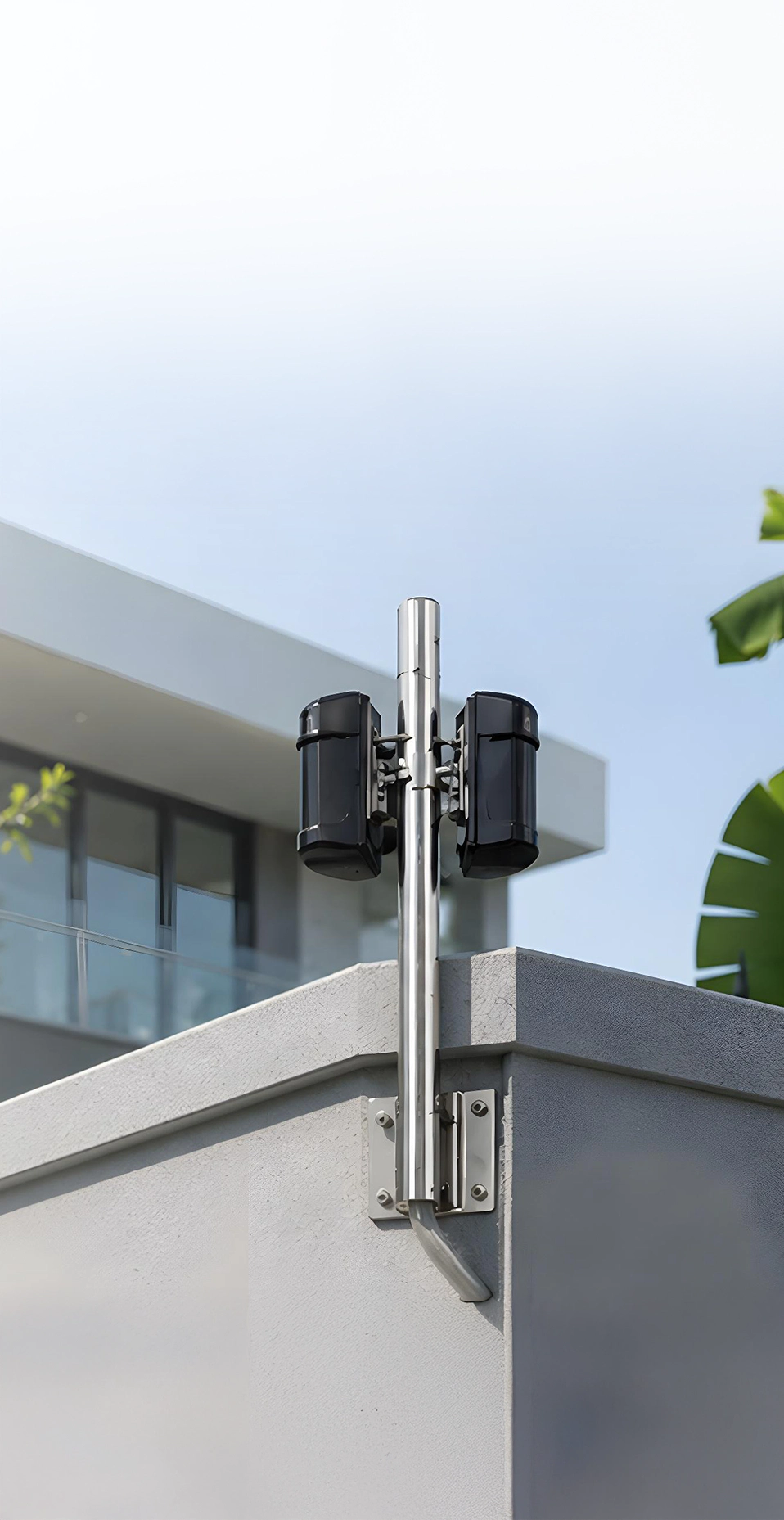

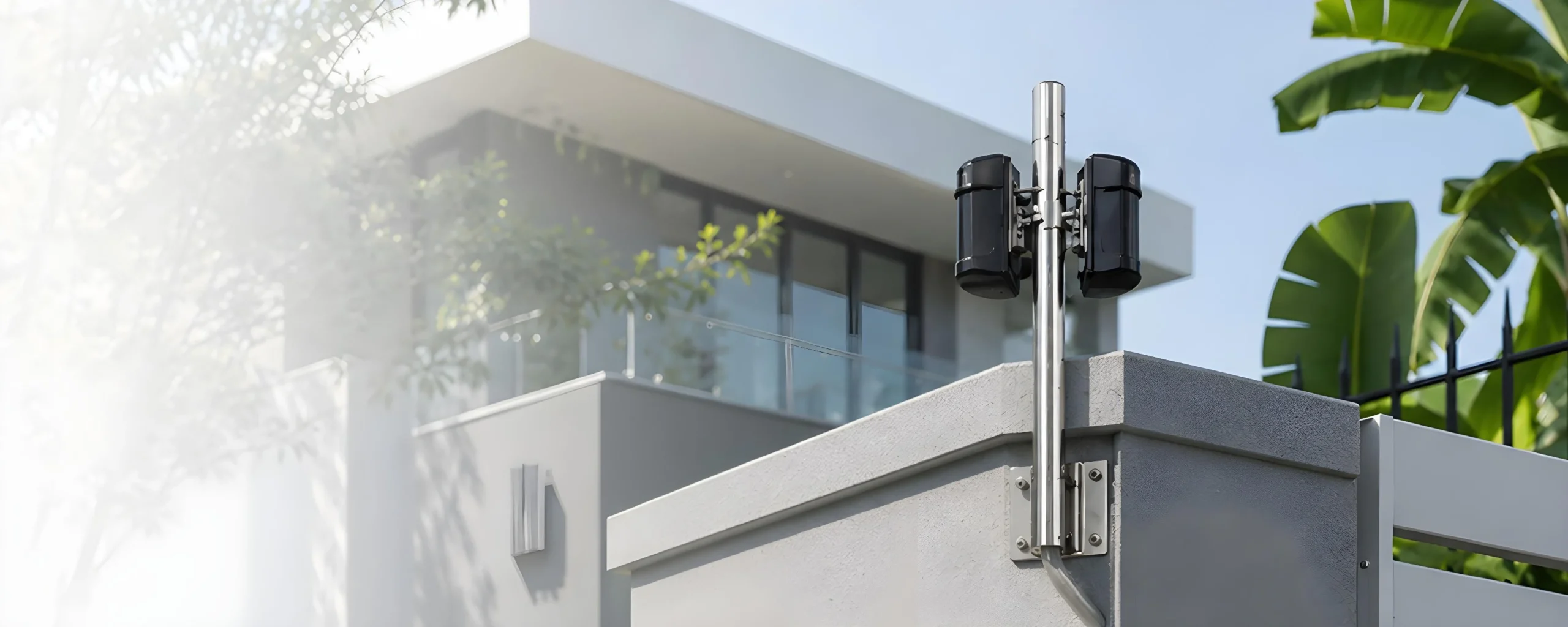

  • “U” Brackets included for pole mounting
  • Quick, easy installation with built-in laser beam alignment system *E-964-D390Q also features:
  • Four selectable beam frequencies

ข้อมูลทางเทคนิค

Type Twin Photobeam Detectors with Laser Beam Alignment
Current Draw 64mA max.
Sensing Range Outdoor- 90′ (30m), Indoor- 190′ (60m)
Operating Voltage 10~30VAC/VDC (Non-polarized)
Interupt Speed 50msec~700msec (variable)
LEDs – Red ON indicates transmitter and receiver not aligned or beam is broken
LEDs – Yellow ON indicates weak receiver signal or beam is broken
LEDs – Green ON indicates unit connected to power
Detection System Simultaneous break of 2 beams
Alarm Output NO/NC relay, 1A @ 120VAC, min. 1 sec.
Tamper Output NC. switch, 1A@120VAC
Case material PC Resin
Laser Wavelength 650nm
Operating Temperature -13º~+131º F (-25º~+55º C)
Laser Output Power 5mW
Alignment Angle Horizontal (+/-)90º, Vertical: (+/-)5º
Weight 2.5 lbs. (1.1kg)
