NOTIFIER NFS-320

NOTIFIER NFS-320

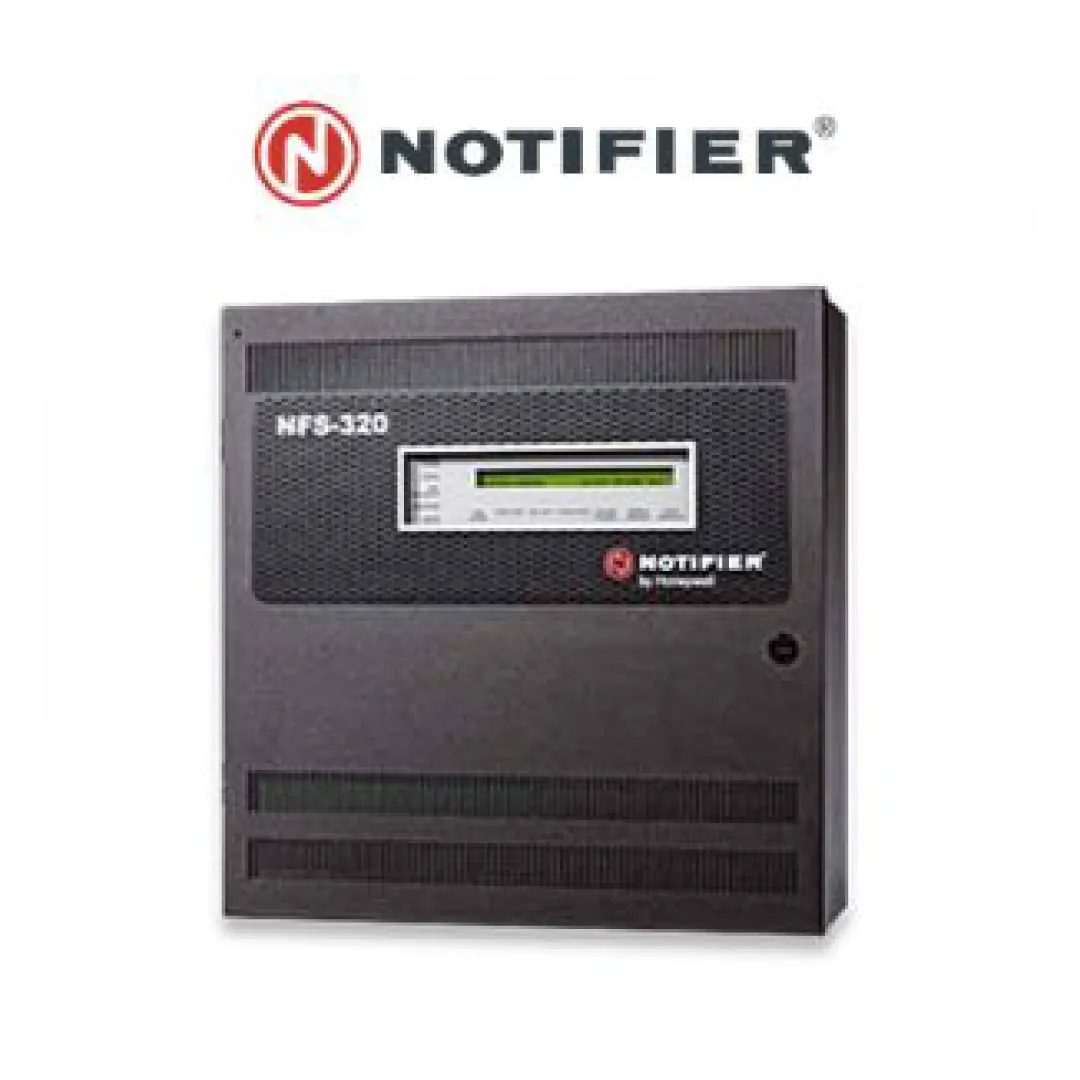

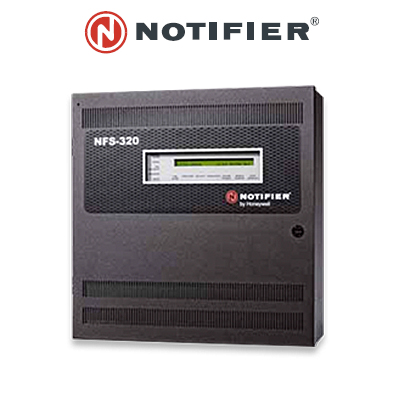

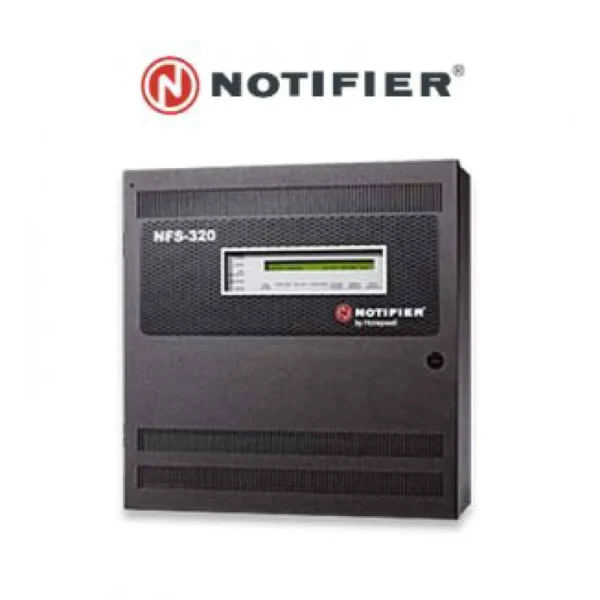

The NFS-320 intelligent Fire Alarm Control Panel is part of the ONYX® Series of Fire Alarm Controls from NOTIFIER.

As a stand-alone small-to-medium system, or as a large net- work, the ONYX Series of products meets virtually every application requirement.
Designed with modularity and for ease of system planning, the NFS-320 can be configured with just a few devices for small building applications, or for a large campus or high-rise appli- cation. Simply add additional peripheral equipment to suit the application.

NOTE: Unless called out with a version-specific “C” or “E” at the end of the part number, “NFS-320” refers to models NFS-320, NFS-320C, and NFS-320E; similarly, “CPU-320” refers to models CPU-320, CPU-320C, and CPU-320E.

หมวดหมู่: ,

ข้อมูลสินค้า

  • Listed to UL Standard 864, 9th edition.
  • One isolated intelligent Signaling Line Circuit (SLC) Style 4, 6 or 7.
  • Up to 159 detectors (any mix of ion, photo, thermal, or multi-sensor) and 159 modules (N.O. manual stations, two- wire smoke, notification, or relay). 318 devices maximum.
  • Standard 80-character display.
  • Network option — 103 nodes supported (AFP-200, AFP-300/400, NFS-320, NFS-640, NFS2-640, AFP1010, AM2020, NFS-3030, NFS2-3030, NCA/NCA-2 Network Annunciator, NCS Network Control Station, or ONYX- WorksTM Network Control Station) using wire or fiber-optic connections.
  • 6.0 amp power supply with four Class A/B built-in Notifica- tion Appliance Circuits (NAC). Selectable System Sensor, Wheelock, or Gentex strobe synchronization.
  • Built-in Alarm, Trouble, and Supervisory relays.
  • VeriFire® Tools offline program option. Sort Maintenance Reports by compensation value (dirty detector), peak alarmvalue, or address.
  • Autoprogramming and Walk Test reports.
  • Optional universal 318-point DACT.
  • 80-character remote annunciators (up to 32).
  • EIA-485 annunciators, including custom graphics.
  • Printer interface (80-column and 40-column printers).
  • History file with 800-event capacity in nonvolatile memory,plus separate 200-event alarm-only file.
  • Alarm Verification selection per point, with tally.
  • Autoprogramming and Walk Test reports.
  • Positive Alarm Sequence (PAS) Presignal.
  • Silence inhibit and Auto Silence timer options.
  • March time / temporal / California two-stage coding / strobesynchronization.
  • Field-programmable on panel or on PC, with VeriFire Toolsprogram check, compare, simulate.
  • Full QWERTY keypad.
  • Charger for up to 90 hours of standby power.
  • Non-alarm points for lower priority functions.
  • Remote ACK/Signal Silence/System Reset/Drill via monitor modules.
  • Automatic time control functions, with holiday exceptions.
  • Surface Mount Technology (SMT) electronics.
  • Extensive, built-in transient protection.
  • Powerful Boolean logic equations.

    สอบถามข้อมูลเพิ่มเติมเกี่ยวกับระบบสัญญาณกันขโมย, สัญญาณกันขโมยบ้าน, กันขโมยขึ้นบ้าน หรือระบบรักษาความปลอดภัยอื่น ๆ อาทิ เซ็นเซอร์กันขโมย กล้องกันขโมย กล้องวงจรปิด กล้องวงจรปิด wifi เซ็นเซอร์จับความเคลื่อนไหว ระบบแจ้งเหตุเพลิงไหม้ ตลอดจนบริการติดตั้ง EV Charger ติดตั้งที่ชาร์จรถไฟฟ้าที่บ้าน ราคาคุ้มค่าของ MAXWELL ได้ที่ :
    Tel. 02-374-4060
    E-mail: support@maxwell.co.th
    Line @maxwellsecurity
    Facebook : https://www.facebook.com/RiscoDistributorThailand/
    สายด่วน Hotline (24 ชั่วโมง) 085-485-3500
    หรือติดต่อพนักงานขาย 085-485-3501

System Capacity
Intelligent Signaling Line Circuits 1
Intelligent detectors 159
Addressable monitor/control modules 159
Programmable internal hardware and output circuits 4
Programmable software zones 99
Special programming zones 14
LCD annunciators per CPU-320/-320E 32
ACS annunciators
per CPU-320/-320E		 32 addresses x 64 points
