Overall Performance

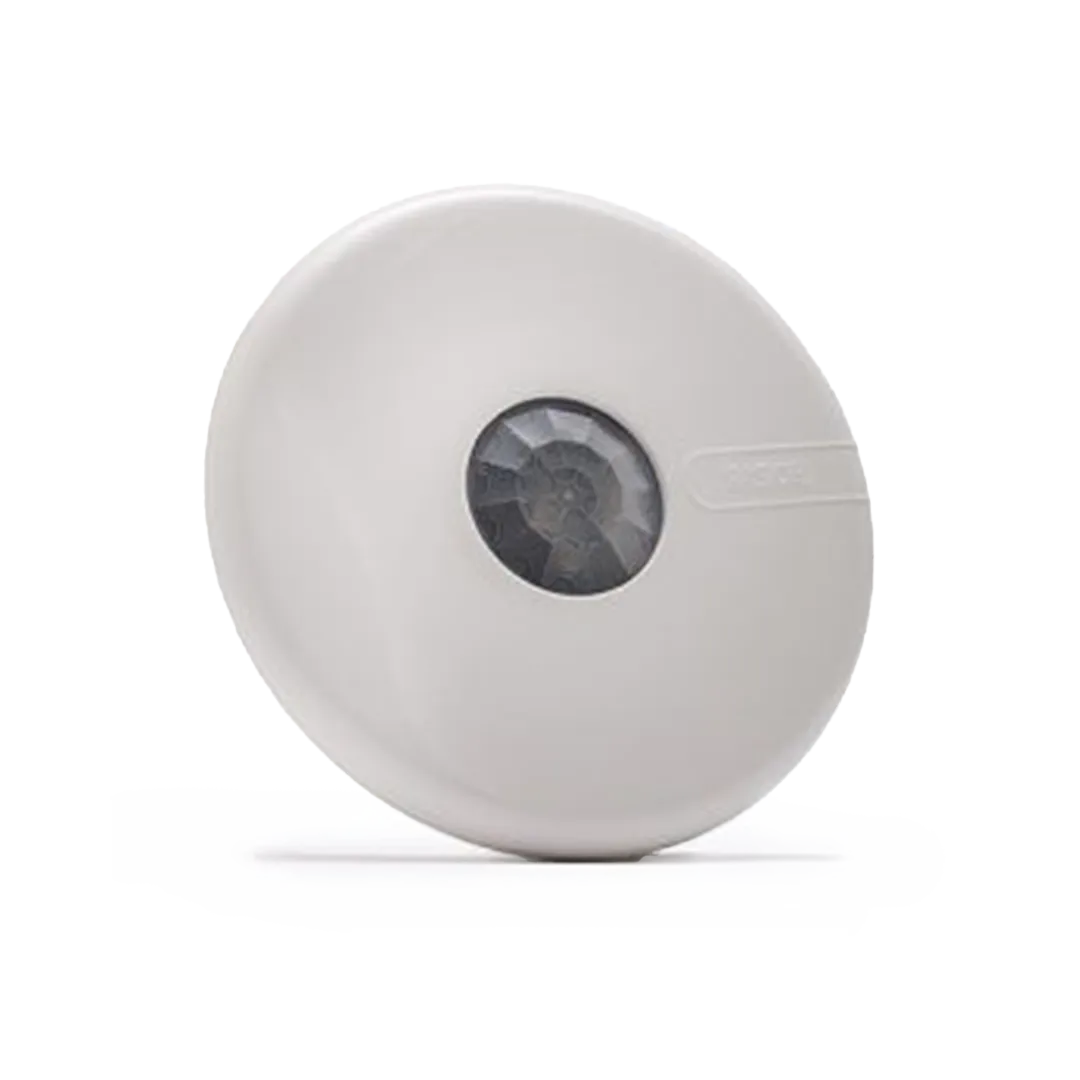

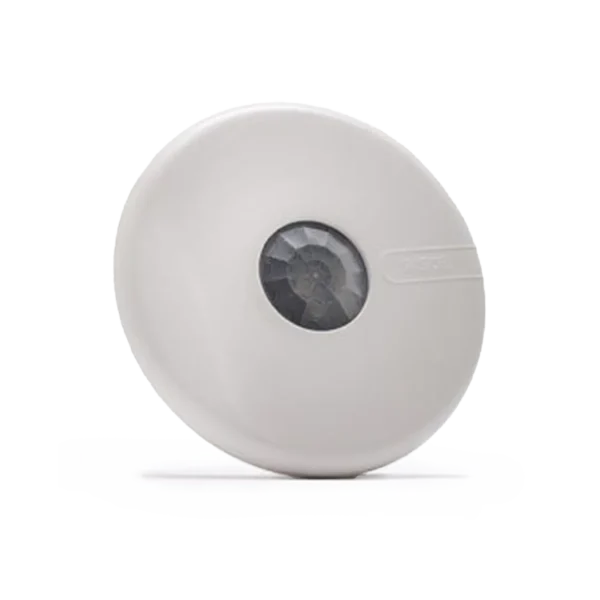

The LuNAR RK150DTG3 is the ultimate ceiling motion detector for professional installations, incorporating both Anti-Mask and Anti-Cloak™ Technologies (ACT™). Built-in end-of-line (EOL) resistors are included to to simplify the installation.
The detector features a 110º wide-angle Fresnel lens, providing 360º coverage

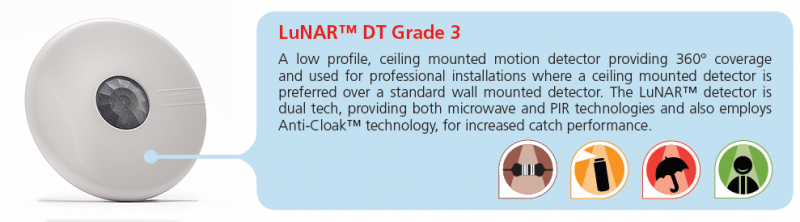

LuNAR™ DT Grade 3
A low profile, ceiling mounted motion detector providing 360° coverage and used for professional installations where a ceiling mounted detector is preferred over a standard wall mounted detector. The LuNAR™ detector is dual tech, providing both microwave and PIR technologies and also employs Anti-Cloak™ technology, for increased catch performance.
| Electrical | |
| Current Consumption | 16mA at 12VDC (Typical) 41mA at 12VDC (max.) |
| Voltage requirements | 9 -16VDC* |
| Alarm contacts | 24VDC, 0.1A |
| Tamper contacts | 24VDC, 0.1A |
| FAULT/AM contacts | 24VDC, 0.1A |
| Environmental | |
| RF immunity According to EN50130-4 | According to EN50130-4 |
| Operating temperature | -20°C to 55°C (-4F to 131F) |
| Storage temperature | -20°C to 55°C (-4F to 140F) |
| Optical | |
| Filtering | White Light Protection |
| Physical | |
| Size | Ø 135 x 27 mm (Ø 5.3 x 1 in) |
| Weight | 200 gr. (7 oz.) |
