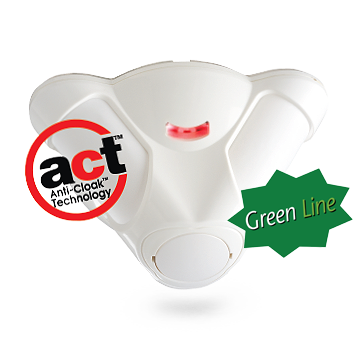

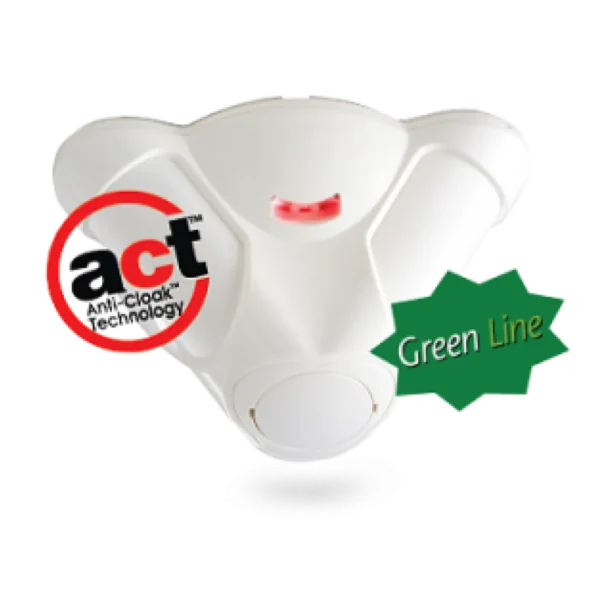

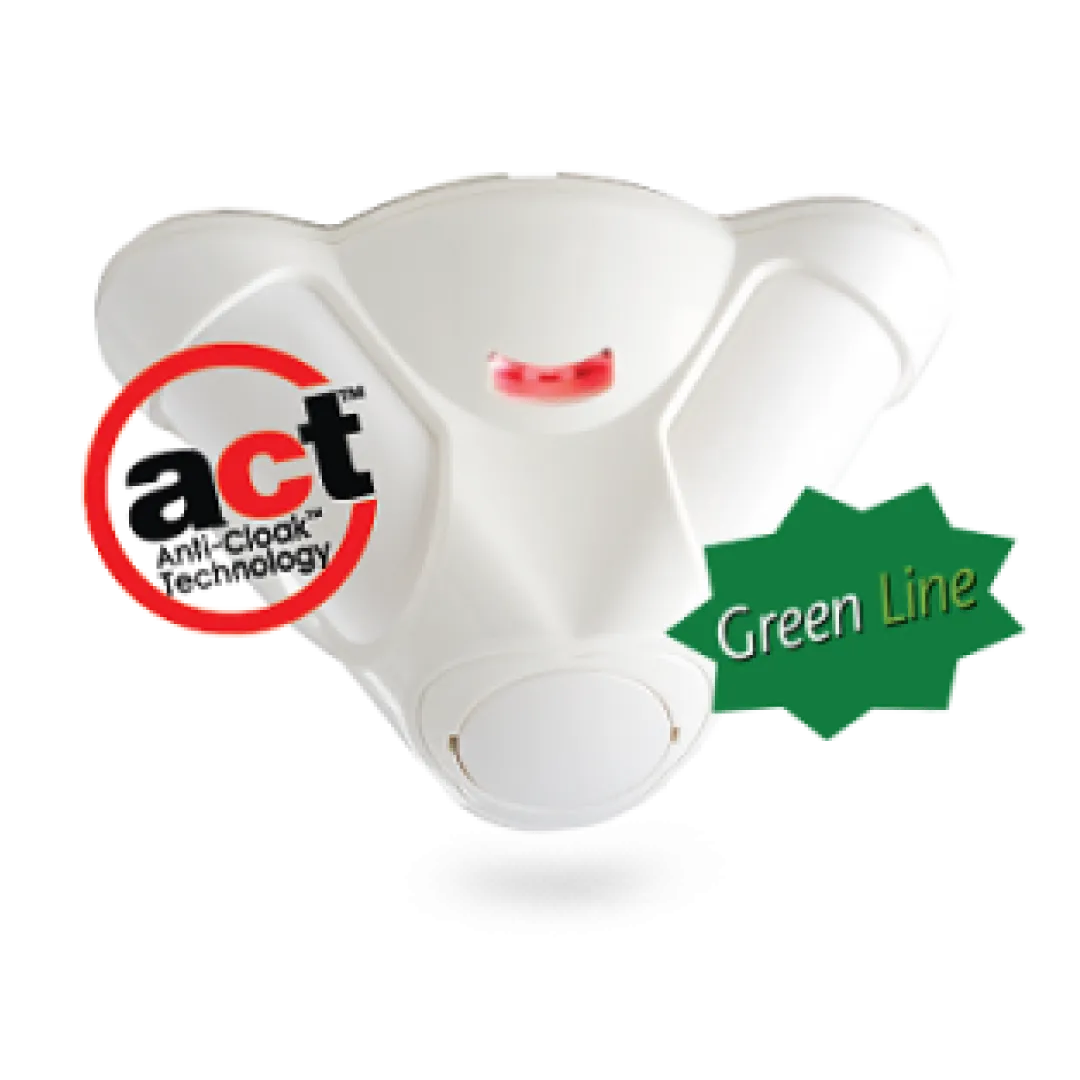

Industrial LuNAR™ Grade 3

Industrial LuNAR™

The Industrial LuNAR™ Grade 3 is the most intelligent ceiling detector available – with a unique bi-directional remote control and a mounting height of up to 8.6m (28’).As the only ceiling mount detector with Anti-Cloak™ Technology, it detects intruder camouflage attempts and delivers the highest performance level – even at high warehouse temperatures.Industrial LuNAR™ is optimal for protecting warehouses, due to the installation height of up to 8.6m (28’) and due to Anti-Cloak™ Technology that is able to accurately detect even in the summer heat in non air-conditioned warehouses.Industrial LuNAR™ is the ideal solution for this application as the detector is difficult to mask or block unintentionally when shelves are rearranged or boxes are stacked up.

หมวดหมู่:

คุณสมบัติ

  • RISCO Bus detector with Anti-Cloak™ Technology
  • Up to 8.6m (28′) mounting height
  • 360° by 18m (60′) diameter coverage pattern
  • 3 independently adjustable PIR channels for customized coverage
  • RISCO Bus dramatically reduces cabling, installation equipment and labor costs, while providing benefits of remote services
  • Active IR Anti-Mask on all three channels
  • Built-in Triple EOL resistors, jumper selectable
  • Remote Control & Diagnostics via PC software or a bi-directional remote control

ข้อมูลทางเทคนิค

  • Coverage: 360° by 18m (60’) diameter: Coverage pattern consists of 192 fingers (96 Fresnel facets) divided into 3 lens sections. Each lens section has 4 vertical positions for variable mounting height and customized coverage.
  • Variable Mounting Height: From 2.7m to 8.6m (9’ to 28′) 4 lens positions according to installation height.
  • Intruder Detection Method: Dual Technology (PIR+MW) with Anti-Cloak™ Technology
  • Green Line Technology: √
  • Anti-Mask: 3 Active IR channels
  • Built-in EOL resistors: Triple EOL
  • True Temperature Compensation: √
  • Operating Voltage: 9 to 16 VDC
  • Current Consumption: 20mA at 12VDC, 30mA at 16 VDC
  • Maximum 40mA with all LEDs on
  • Optical Filtering for white light protection: PIR cover filter
  • RF immunity: 40 V/m from 10MHz to 1GHz
  • Operating Temperature: -20° C to 55° C (-4° F to 131° F)
  • Storage Temperature: -20°C to 60° C (-4° F to 140° F)
  • Dimensions: 99mm x 194mm (3.9” x 7.6”)
