- Cutting-edge compact design
- Push-button-type manual fire alarm box
- Easy reset after operation
- Addressable and conventional types available
- Telecommunication means provided (except FMMN202-U)
- Response lamp provided (except FMMN202-U)
Specifications

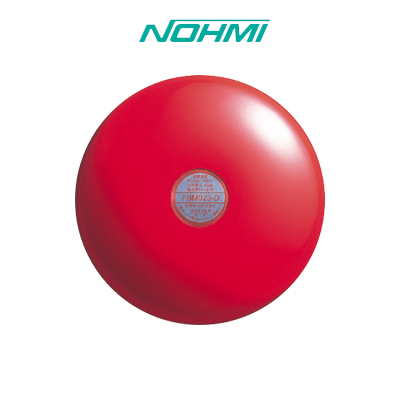

Model No : FBM023
Type : Standard
Rated Voltage : 24 VDC
Rated current : 10 mA
Polarity : Non-polarized
Ambient Temperature : – 10 to 40 °C
Nominal Sound Level : More than 90 dB(at 1 m)
Sounding Mechanism : Motor driven
Materials : Gong : Aluminum Alloy
Finish : Gong : Baked meramine
Weight : Approx. 420g
Others : Marked in Japanese
Model No : FBM023-D
Type : with diode
Rated Voltage : –
Rated current : –
Polarity : Polarized
Ambient Temperature : –
Nominal Sound Level : –
Sounding Mechanism : –
Materials : Gong : –
Finish : Gong : –
Weight : –
Others : –
Model No : FBM023Z-D
Type : with diode
Rated Voltage : –
Rated current : –
Polarity : Polarized
Ambient Temperature : –
Nominal Sound Level : –
Sounding Mechanism : –
Materials : Gong : –
Finish : Gong : –
Weight : –
Others : Marked in English
Model No : FBW013-EA
Type : Rainproof
Rated Voltage : –
Rated current : –
Polarity : Non-polarized
Ambient Temperature : – 10 to 50 °C
Nominal Sound Level : –
Sounding Mechanism : –
Materials : Gong :Gong : Aliminium Alloy
Housing : ABS resin
Finish : Gong : Baked meramine-
Weight : Approx. 540g
Others : Marked in Japanese
