ข้อมูลทางเทคนิค

• EN50131 Security Grade 2: Relevant for all DigiSense models
• Coverage Range: 15m x 15m (50’x50’) for DT, DT Quad, DT “OR” Logic and PIR and QUAD models, 12m x 12m (40’ x 40’) for DT Pet and PIR Pet models

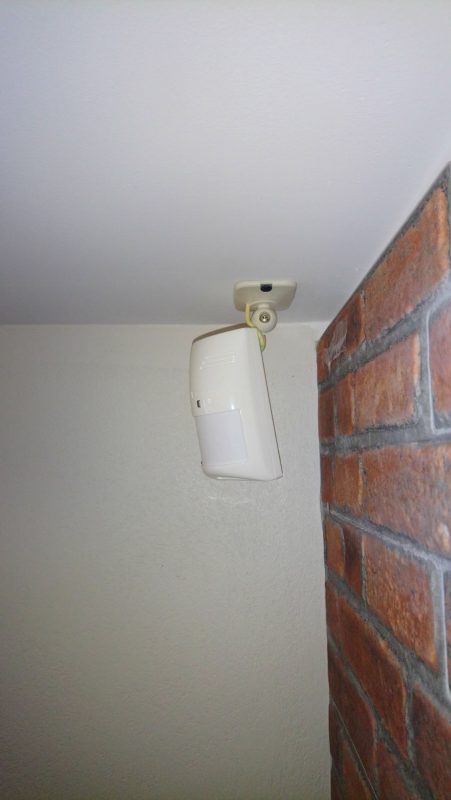

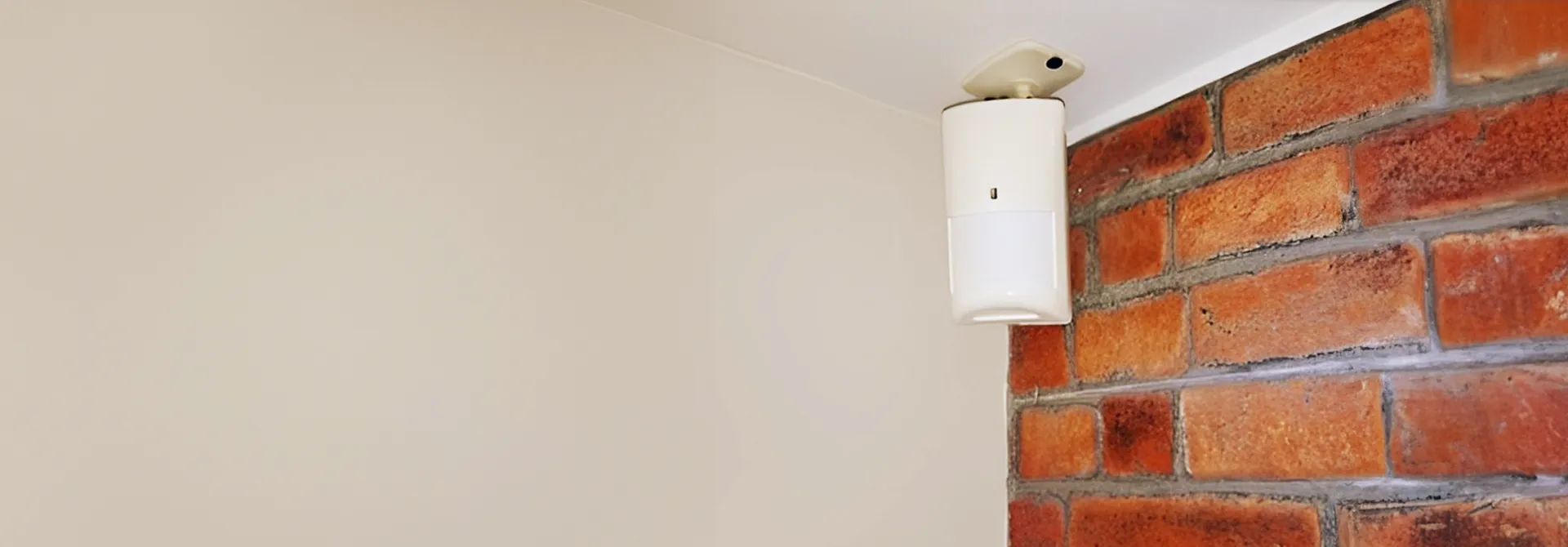

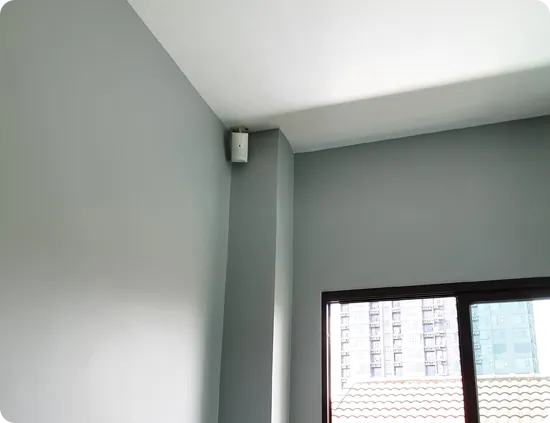

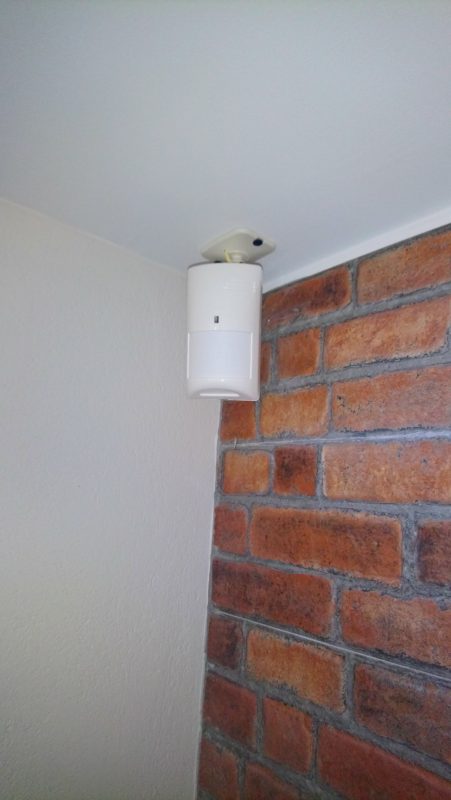

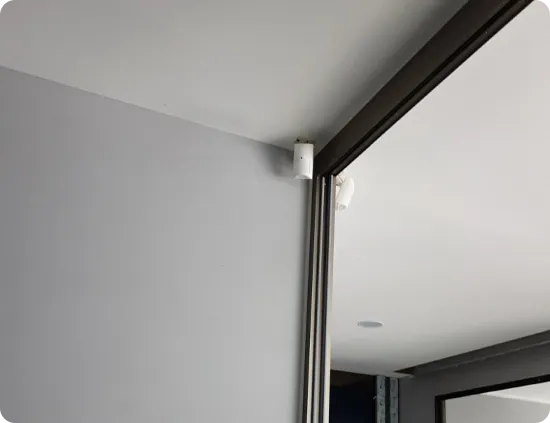

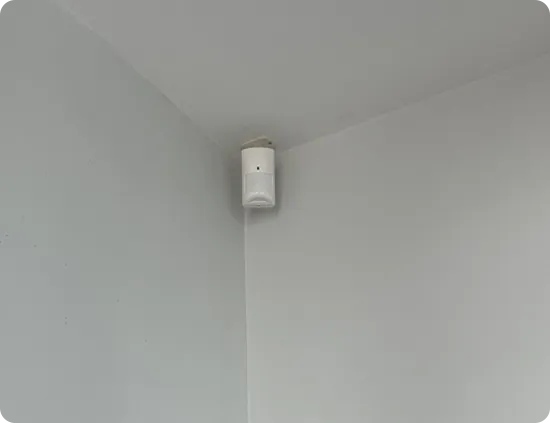

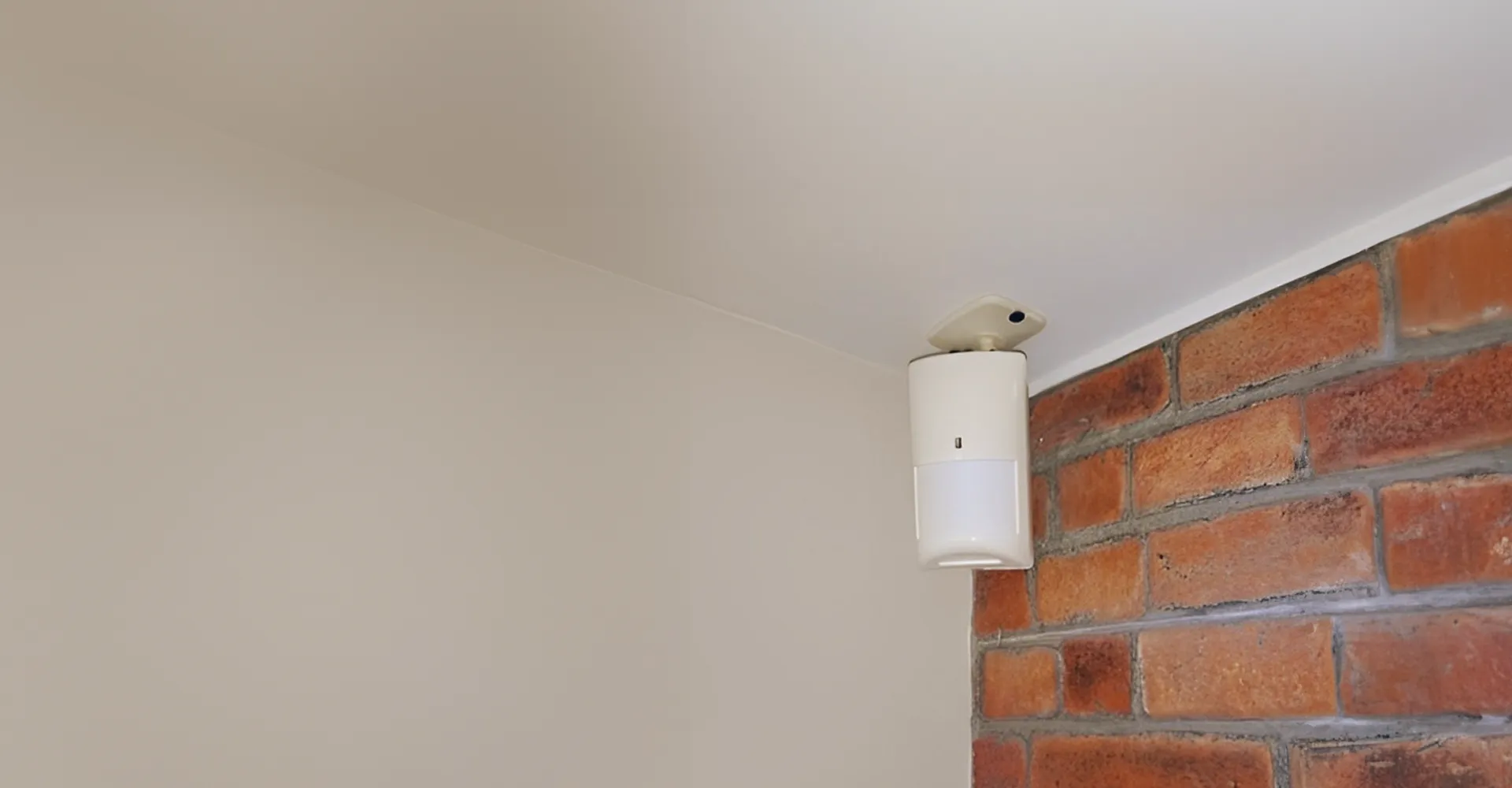

• Installation height: 2.4m (7’10”) for DT Pet and PIR Pet models, 2-2.7m (6’7”-9’) for DT & DT QUAD, DT “OR” Logic and PIR and Quad models
• Detection Logic: MW and PIR for DT &DT QUAD and DT Pet models, PIR for PIR & QUAD and PIR Pet and Selectable: MW or PIR , MW and PIR for DT “OR” Logic
• Creep Zone: Not included in PIR & QUAD and PIR Pet versions
• Anti-masking: in DT “OR” Logic model, using MW Channel
• Pet Friendly with VPT: In DT Pet(34kg/ 35lb) and PIR Pet (32kg/ 70lb)
• Swivel: Not applicable for DT Pet and PIR Pet models
• Microprocessor based Digital Signal Processing: Not included in PIR & QUAD
• Built-in EOL Resistors: Double EOL for DT and DT QUAD, DT Pet, PIR & Quad, Triple EOL for DT “OR” Logic, N/A in PIR Pet model
• Anti-fluorescent interface signal processing: Not included in PIR & QUAD, PIR Pet models
• Optional Corridor and Curtain lenses: N/A in DT Pet and PIR pet models
• Operating Voltage: 9 to 16 VDC in all models
• Optical Filtering: White light protection, pigmented lens
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Dimensions: 106 x 60 x 47mm (4.17” x 2.36” x 1.85”)
