Overall Performance
| Specification | Details |
|---|---|
| Battery Type CR 123, 3V Lithium Battery x 3 |
 |
| Battery Life | 3 batteries – 3 year typical lifetime |
| Coverage | 13m (39.4ft), 180° |

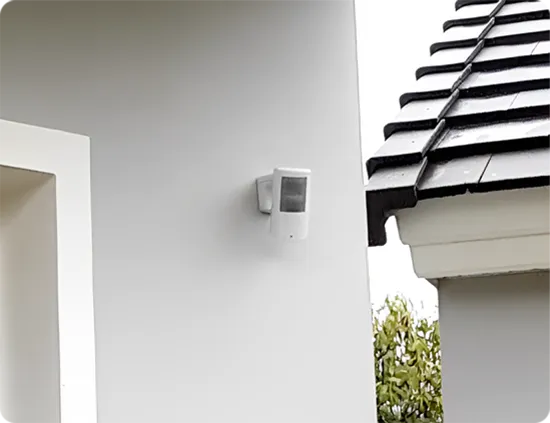

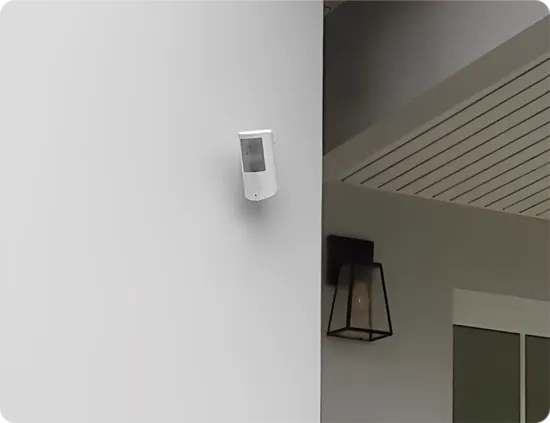

| Installation height | Typical 2.2m |
| Microwave | K-Band, two channels |
| PIR | 2 dual element sensors, 2 separate lenses |
| Anti-mask detection method | Active infrared |
| Tamper | Wall, 3-axis accelerometer |
| Pet immunity | Animals up to 35cm (1.1ft) head height |
| Operating voltage | 3 x CR123 lithium batteries |
| RF Immunity | 10MHz to 3GHz; according to EN50130-4 |
| Operating temperature | -25°C to 65°C |
| Storage temperature | -25°C to 70°C |
| Environmental rating | IP65 |
| Dimensions (H x W x D) | 176 x 89 x 107mm |
| Direct sunlight immunity | Yes |
| Advanced outdoor detection algorithms | Sway Recognition, Digital Correlation |
| Wireless dual technology | Yes |
| Solar power swivel option | Yes |
| Shock-based tamper (accelerometer) | Yes |
| Specification | Details |
|---|---|
| Coverage | 12m (39.4ft), 90° |
| Installation height | 1.8-2.7m |
| Microwave | K-Band, two channels |
| PIR | 2 dual element sensors, 2 separate lenses |
| Anti-mask detection method | Active infrared |
| Tamper | Wall & cover, 3-axis accelerometer |
| Built-in EOL resistors | Triple EOL |
| Output contacts | 100mA, 24V, N.C; alarm, tamper, and Fault/AM |
| Pet immunity | Animals up to 35cm (1.1ft) head height |
| Operating voltage | 9 to 16VDC |
| RF Immunity | 10MHz to 3GHz; according to EN50130-4 |
| Operating temperature | -25°C to 65°C |
| Storage temperature | -25°C to 70°C |
| Environmental rating | IP54 |
| Dimensions (H x W x D) | 167 x 88 x 106mm |
| Direct sunlight immunity | Yes |
| Advanced outdoor detection algorithms | Sway Recognition, Digital Correlation |
